Analogue Outdoor Clock - Profiline

Mobatime profiline outdoor analogue clock metallic case (Aluminum), side view

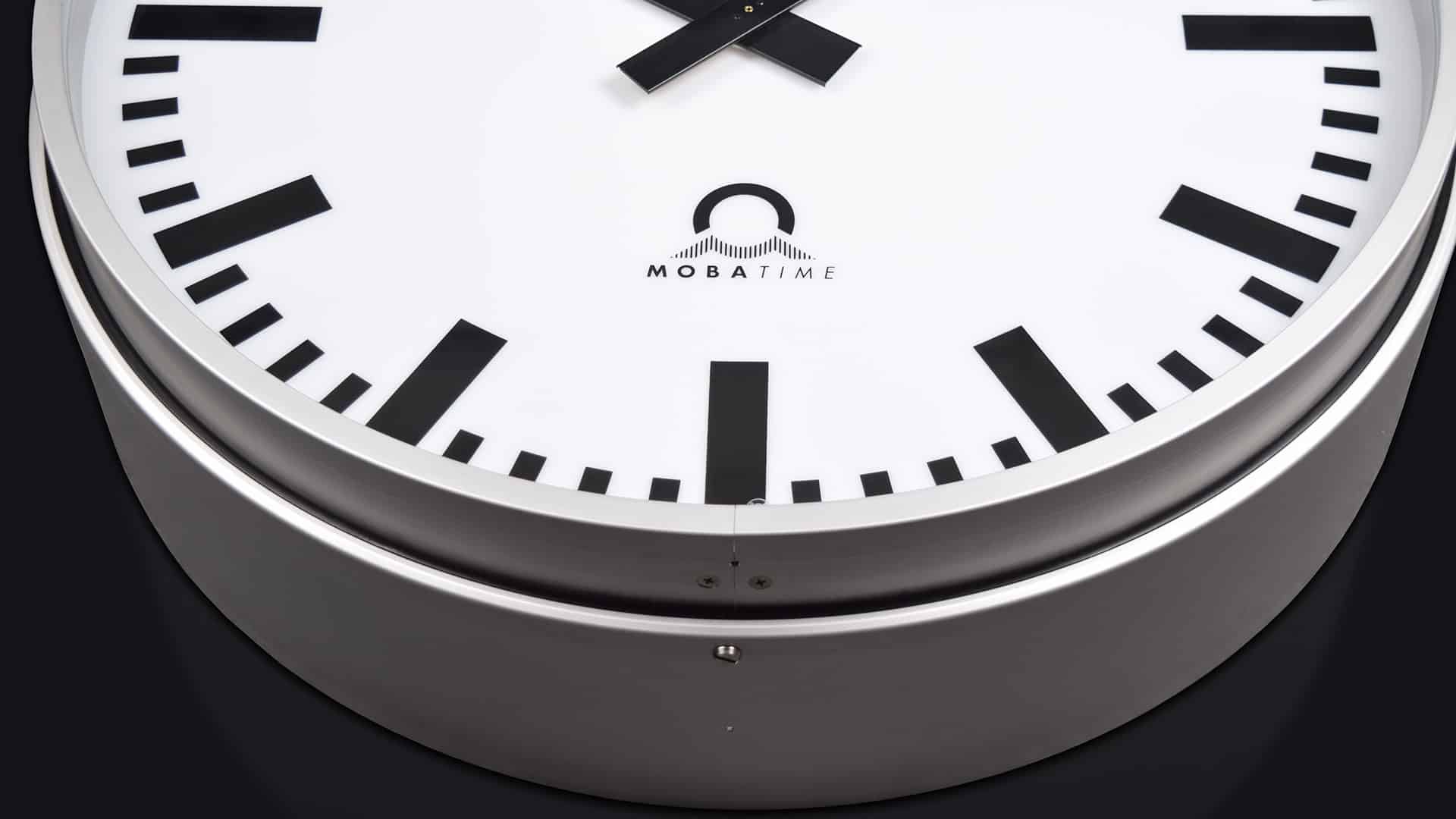

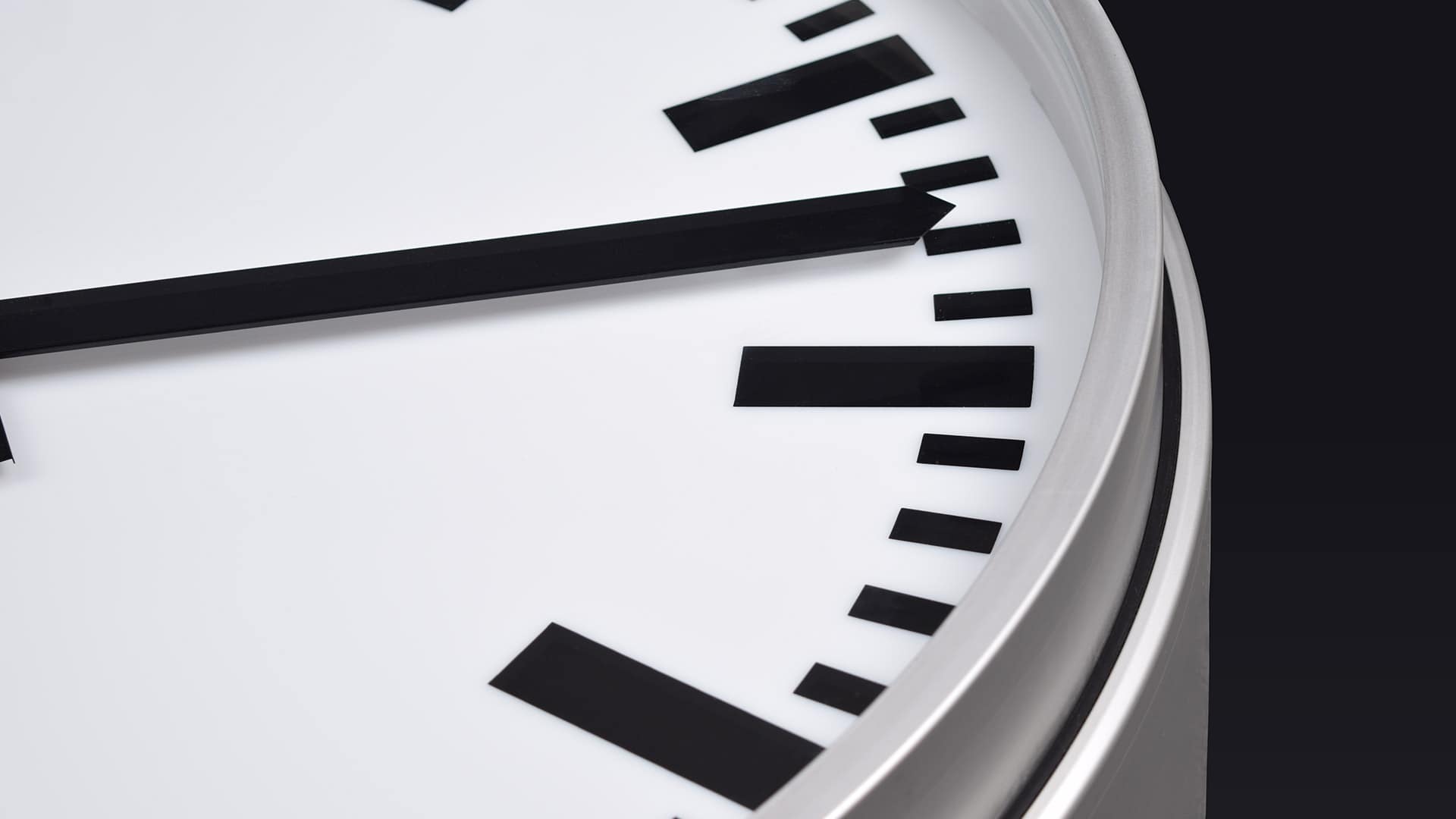

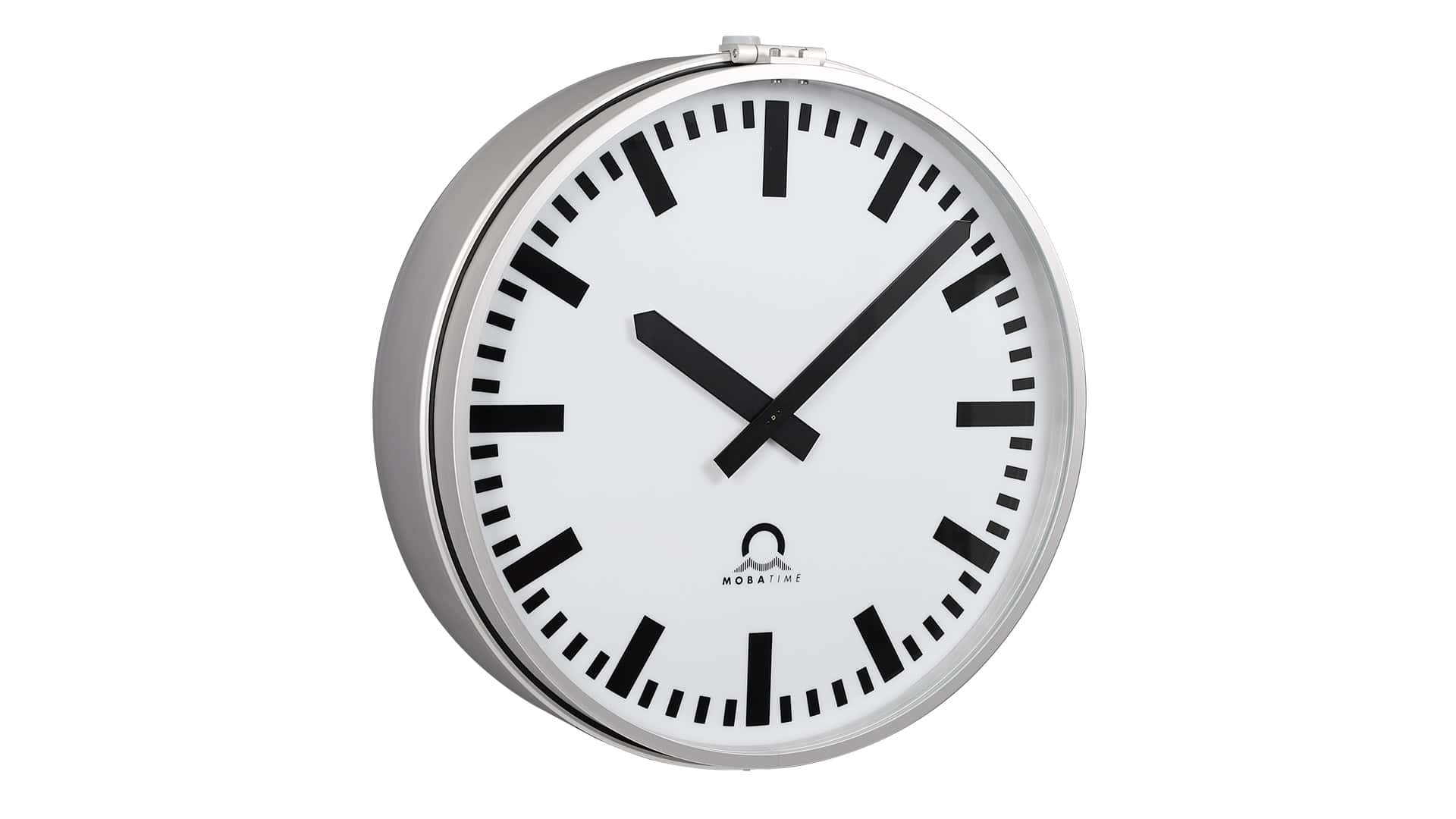

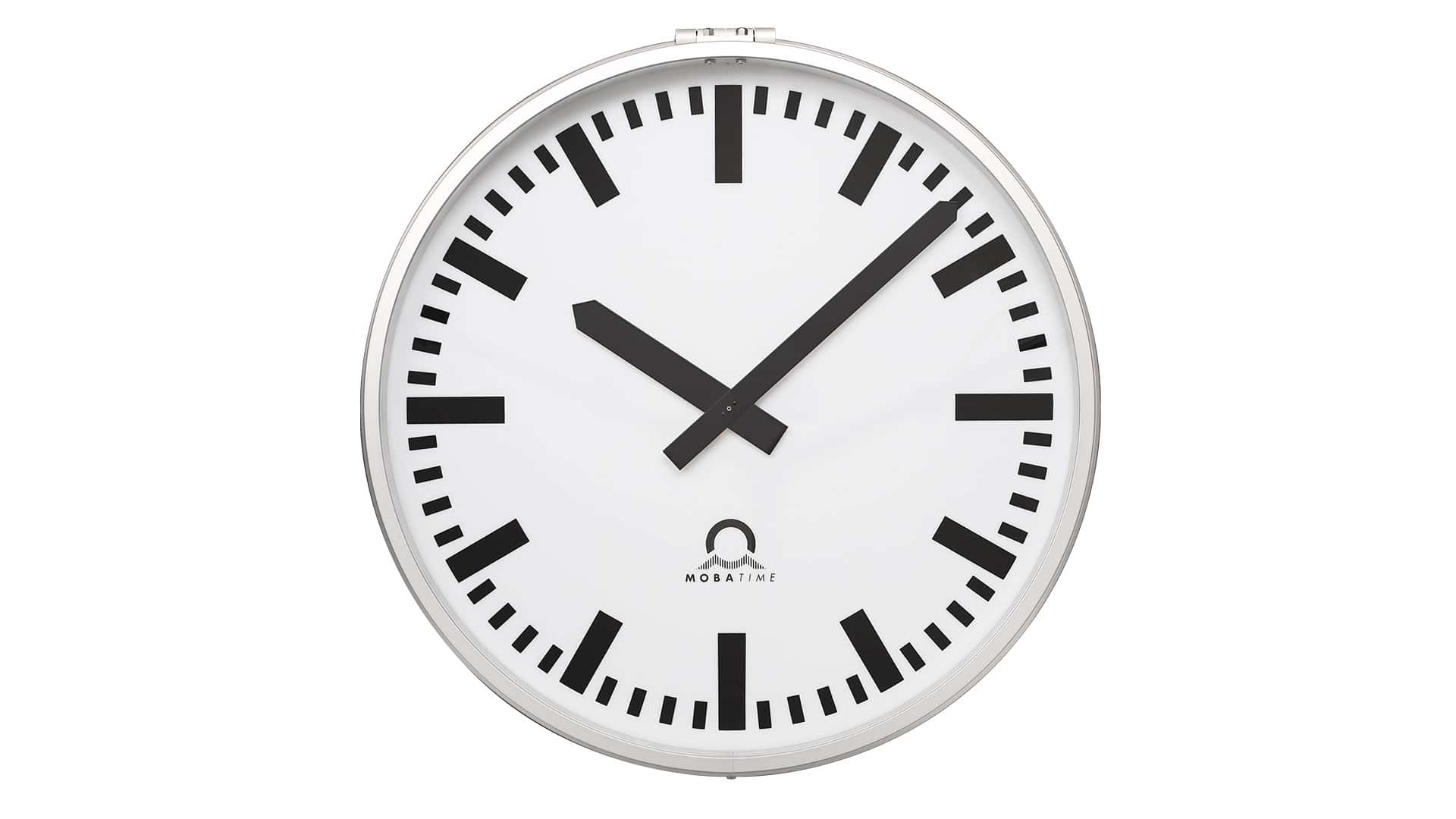

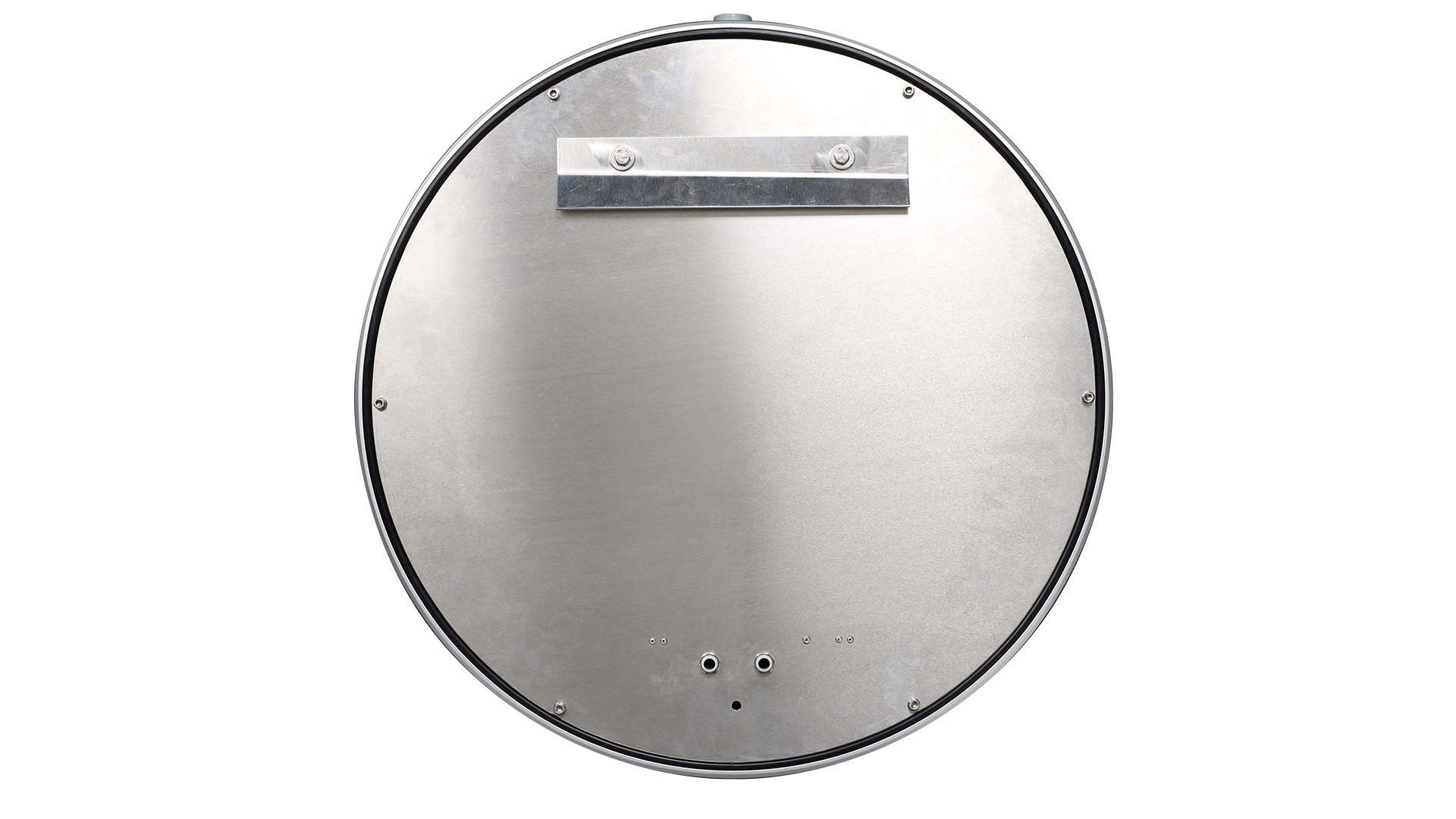

Mobatime profiline outdoor analogue clock metallic case (Aluminum), side view Mobatime profiline outdoor analogue clock metallic case (Aluminum), front view Mobatime profiline outdoor analogue clock metallic case (Aluminum) back view Mobatime profiline outdoor analogue clock metallic case (Aluminum), detail view Mobatime profiline outdoor analogue clock metallic case (Aluminum) detail view

Analogue Outdoor Clock - Profiline

PROFILINE a modular concept of a professional clock line in modern design. The clock case itself is characterized by a highly finished, weatherproof design in aluminum section, build to high professional standards for easy commissioning and service.

Get an offer Learn more
Diameter & optimal reading distance:

  • ø 50cm = 55-60m
  • ø 60cm = 65-70m
  • ø 80cm = 85-90m

Viewing angle: 160°

Time Distribution:

  • Polarized Impulses
  • MOBALine
  • NTP
  • Serial
  • IRIG / AFNOR
  • DCF 77, DCF active
  • GPS (DCF current loop)
  • Quartz

Housing materials:

  • Aluminum (powder coated, RAL 9006)
  • Special housing colors on request

Cover glass:

  • Mineral glass cover
  • Ball-throw resistant glass cover

Degree of protection:

  • IP 54

Power Supply:

  • MOBALine
  • PoE
  • Mains supply
  • Extra Low Voltage
  • Battery



Show more
Analogue Outdoor Clock Metroline

Leaflets

LE-800078.28-PROFILINE-Analoguhr.pdf
Language: EN
Type: PDF
Size: 757.6 KB
LD-800078.28-PROFILINE-Analoguhr.pdf
Language: DE
Type: PDF
Size: 761.4 KB
LF-800078.28-PROFILINE-Analoguhr.pdf
Language: FR
Type: PDF
Size: 758.0 KB
LS-800078.28-PROFILINE-Analoguhr.pdf
Language: ES
Type: PDF
Size: 759.2 KB

Manuals

TE-801323.00-Profiline-Clock Exchange of movement instruction.pdf
Language: EN
Type: PDF
Size: 143.4 KB
TE-801134.01-Profiline-rund Montageanleitung.pdf
Language: EN
Type: PDF
Size: 271.3 KB
TE-801138.01-Aussenuhr-LED Installation DCF GPS WTD.pdf
Language: EN
Type: PDF
Size: 324.7 KB
TE-801137.03-Aussenuhr-LED Installation IMP MBL IRIG LAN GPS.pdf
Language: EN
Type: PDF
Size: 150.2 KB
TE-800991.03-Aussenuhr-LED NTP Installation instructions.pdf
Language: EN
Type: PDF
Size: 79.9 KB
TD-801134.01-Profiline-rund Montageanleitung.pdf
Language: DE
Type: PDF
Size: 289.6 KB
TD-801138.01-Aussenuhr-LED Installation DCF GPS WTD.pdf
Language: DE
Type: PDF
Size: 325.4 KB
TD-801137.03-Aussenuhr-LED Installation IMP MBL IRIG LAN GPS.pdf
Language: DE
Type: PDF
Size: 139.2 KB
TD-800991.03-Aussenuhr-LED beleuchtet Installationsvorschrift NTP.pdf
Language: DE
Type: PDF
Size: 84.5 KB
TF-801134.01-Profiline-rund Montageanleitung.pdf
Language: FR
Type: PDF
Size: 271.5 KB
TF-800991.02-Aussenuhr-LED NTP Installation instructions.pdf
Language: FR
Type: PDF
Size: 200.9 KB
TF-801137.03-Aussenuhr-LED Installation IMP MBL IRIG LAN GPS.pdf
Language: FR
Type: PDF
Size: 141.3 KB
